Description

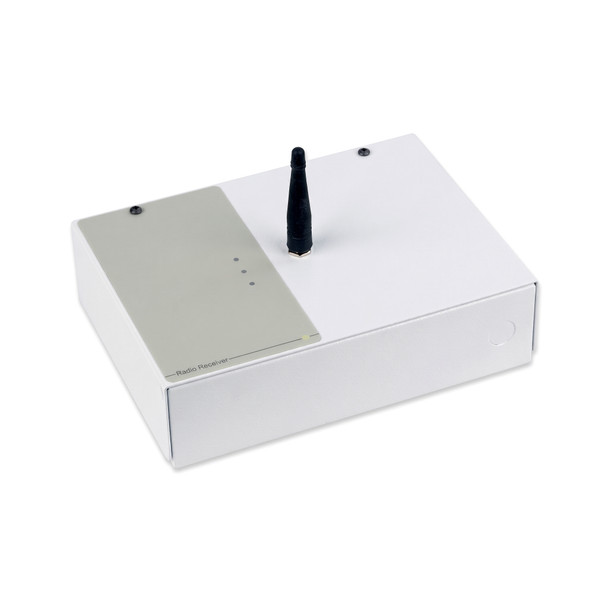

Quantec Radio Receiver
QT422RX
- Designed for use with Quantec’s QT412 & QT432 range of infrared/radio transmitters and pendants.
- Operates at radio frequency (RF) 868.3 MHz,
- Allows standard, help required, emergency and/or attack calls to be generated from external areas such as car parks, loading bays, etc.
- Typical RF coverage is 60m (depending on physical conditions & environmental factors).
- Optional external extension aerial (QT422RXEX) can increase coverage to up to 90m.
- Test Mode allows localised transmitter/receiver testing.
- Optional QT421 RF Integrity Transmitter can be used to send regular test transmissions to the Receiver to ensure it is operational (a fault is flagged if a transmission is not received).
- Can be configured to receive calls from certain transmitters only via an RF grouping facility.
| Quiescent current | TBC. |
| Indicators | Power (green); RF Data (green); Error (amber). |
| Controls | 1 x ‘Group ID’ dipswitch; 1 x ‘Operating Modes’ dipswitch - see instructions for details. |
| Connections | Net +: Net -. |
| Onboard 6.35mm Remote Jack Socket | No. |
| Onboard Sounder | No. |
| Onboard Infrared Receiver | No. |
| Product dimensions (mm) | 275 W x 220 H x 92 D mm. Surface mounting. |
| Construction & finish | Plastic. |
| IP Rating | TBC. |
| Weight | 1.44kg |
| Operating conditions/temperature | -5ºC to +40ºC. Max relative humidity: 95%. |
